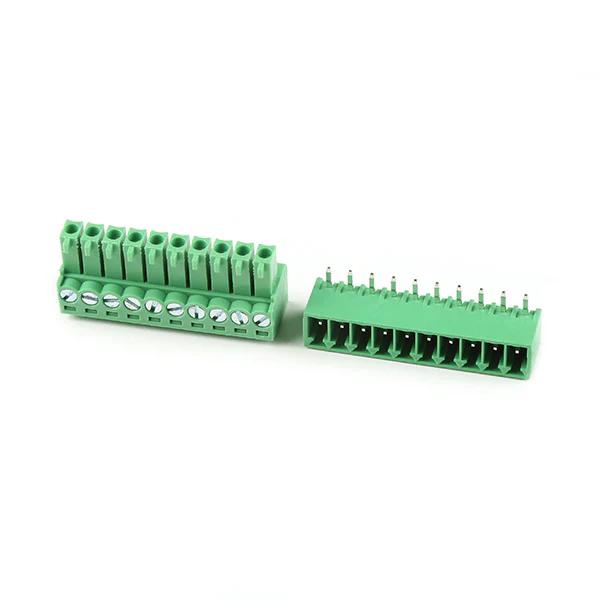

This is a rugged 10-way 3.5mm-pitch PCB terminal block & 3.5mm-pitch rising clamp screw socket. Ideal for robust I/O and power connections when paired together.Includes:1x 10-way 3.5mm Rising Clamp Screw Socket1x 10-way 3.5mm 90° Terminal BlockFeatures:10-way 3.5mm 90° Terminal Block:10-way3.5mm pitchCurrent Rating: 12 Amp/Way Max.Voltage Rating: 300V ACWithstand Voltage: 2500V AC for 1 minuteOperation Temperature: -40°C ~ 105°CSoldering Reliability: 250°C /- 10°C5 Seconds Max.Insulator Body: Polyamide G.F.(UL94V-0), GreenSolder Pin: Copper Alloy, Tin PlatedRoHS Compliant10-way 3.5mm Rising Clamp Screw Socket:10-way3.5mm pitchVoltage Rating: 300V ACCurrent Rating: 12 Amp/Way Max.Withstand Voltage: 2500V AC for 1 minuteWire Range: 16 ~ 24 AWGOperation Temperature: -40°C ~ 105°CInsulator Body: Polyamide G.F.(UL94V-0), GreenContact: Copper Alloy, Tin PlatedTerminal Screw: Steel, Galvanized With Cr3 PlatedRoHS CompliantDocuments:
