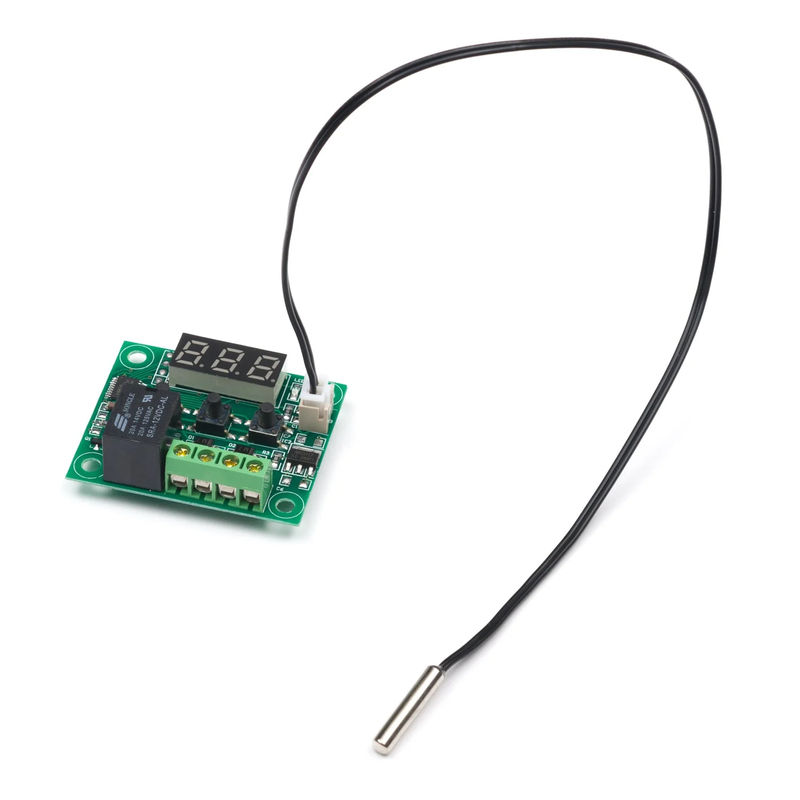

This temperature controller runs on 12V, and is equiped with a 10 amp relay. The unit also features a 3 digit display used for setting and display the temperature. The relay is normally open, once the temperature rises above the set temp. the relay closes. The relay will only re-open once the temperature has fallen 2 degrees (celcius) below the set temp.A practical application for this product is using it as a temperature-controlled relay to automatically turn an exhaust fan on or off in the rear of a cargo van.Specifications:Accuracy: ± 0.1 °CControl accuracy: 0.1 °CBacklash accuracy: 0.1 °CRefresh rate: 0.5STemperature range: -50-110 °CHigh-temperature protection: 0-110°CInput power: DC12VMeasuring input: NTC (10K0.5%) Waterproof sensorEnvironmental requirements: -10 °C –60 °C humidity 20% – 85%Size: 48.5mm * 40.1mm * 15.8mmHole size: 46 * 26.5mmPower consumption: Static current ≤35MA, pull current: ≤65MANet Weight: 22.3GWe’ve put together
