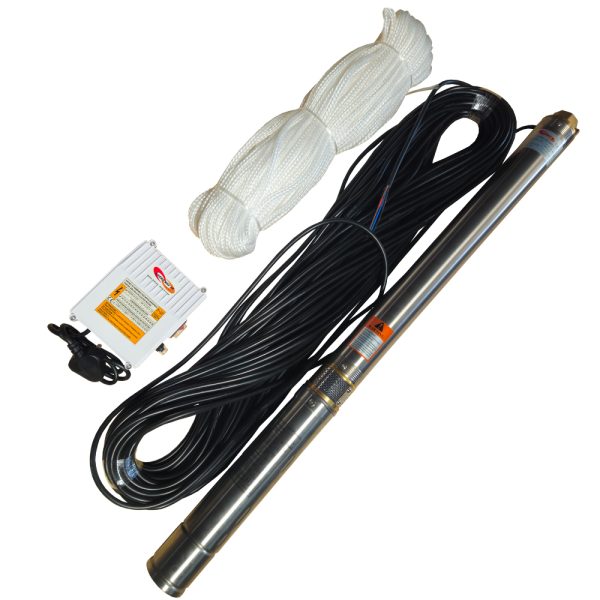

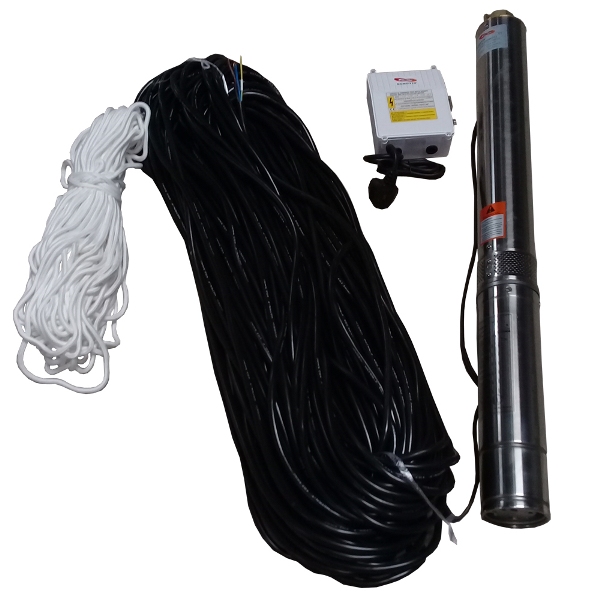

Operating Conditions Maximum fluid temperature : up to 35°C Maximum sand content : 0.25% Minimum borehole diameter : 4″ (10.16cm) Motor, Pump & Control Box Single Phase : 220V – 240V 0.75KW 1HP / 50Hz Equiped with a standard (manual) control box 0.75KW 1HP What’s in the box? 1. 0.75kw Motor 2. 4SD2/15 Pump End 3. Standard Control Box 4. 100m Cable 5. 100m Safety Rope The Hurricane 4SD2/15 Combo complete borehole pump comes complete with a 0.75Kw 220V submersible motor and standard 220V control box as well as 100m of 2.5mm Submersible cable and 100m and is capable of delivering up to 20L/min at a depth of 100m Warranty : 12 Month According to our general sales conditions Specifications Speed : 2850RPM Power : 0.75KW Power : 1HP Outlet : 32mm Pump Diameter : 100mm Pump Length : 577mm Pump Wieght : 5KG Water Delivery Pump Curve
