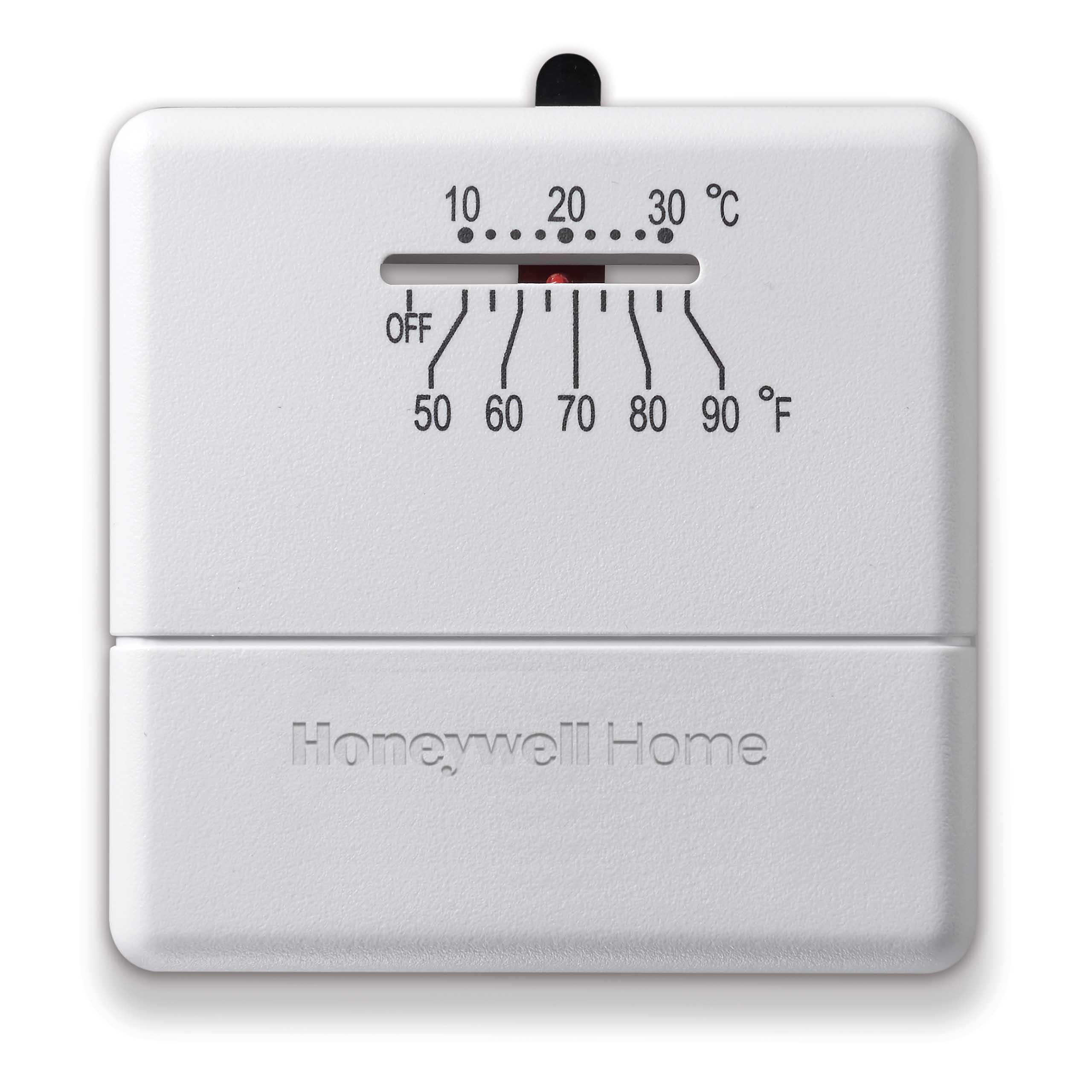

Description Thermostat Type Non-Programmable, 1-Heat Cover Type Square Color Premier White Voltage Rating 20 to 30 Volt AC Current Rating 1 Amp at 24 Volt AC (Heat / Fan) Switch Type SPST, Snap Action Size 3-1/8 Inch Width x 7/8 Inch Depth x 3-1/8 Inch Height Inrush Current 2.5 Amp (Heat), 5 Amp (Fan) at 24 Volt AC Sensor Element Bi-Metal Terminal Designations W, R Humidity 5 to 90 Percent Relative (Non-Condensing) Accuracy / -3 Deg F Setting Temperature Rating 50 to 90 Deg F Application Low Voltage Heating Control Includes Wallplate, Resistor Assembly, Mounting Screws and Wall Anchor, Dealer Logo Pocket Resources:HNYWLLINST00617.pdf
